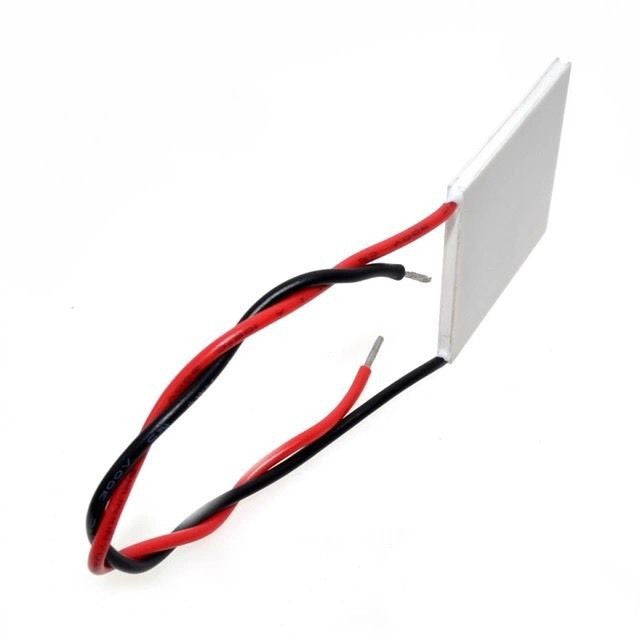

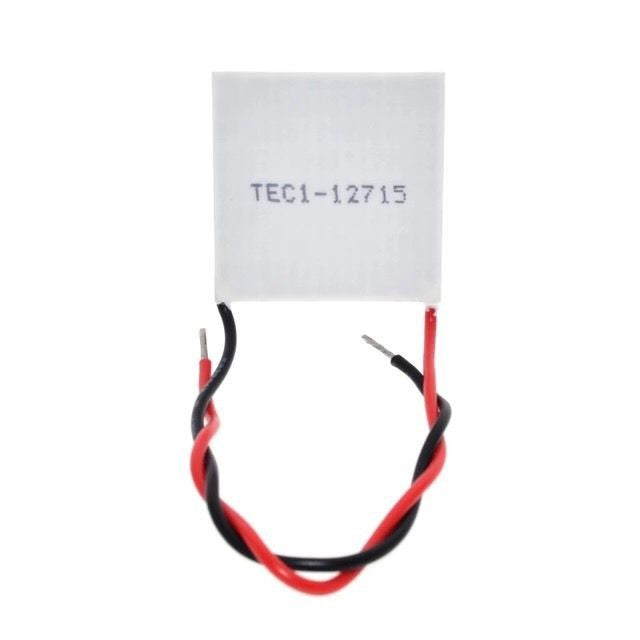

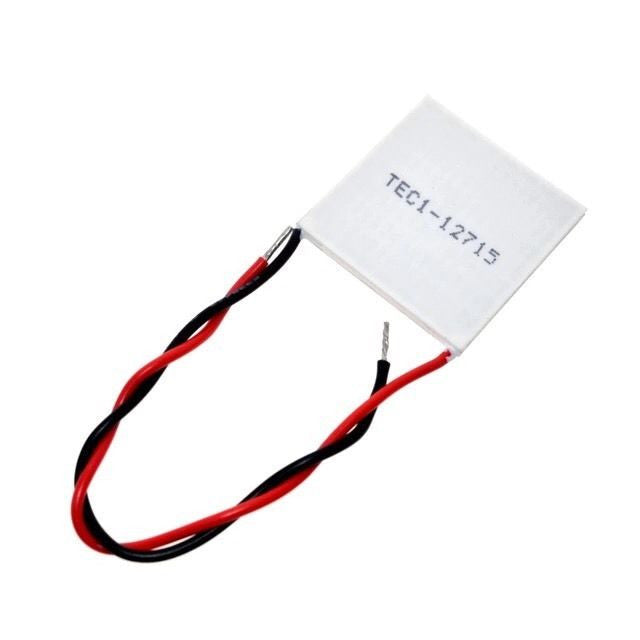

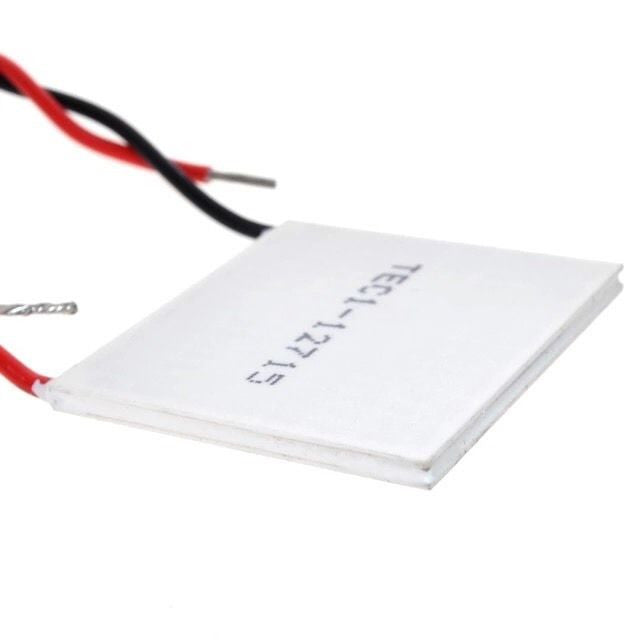

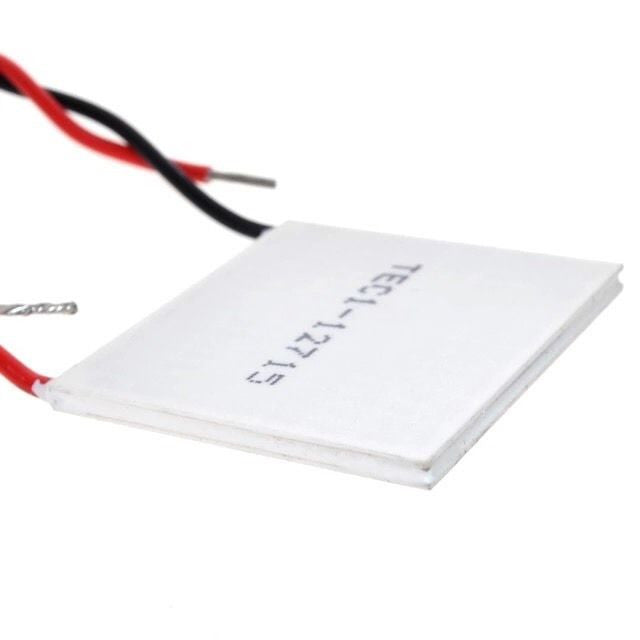

TEC1-12715 ペルチェ冷却モジュール

Name: TEC1-12715 ペルチェ冷却モジュール
Brand: Full Battery
SKU: sku-35352950988
Price: 5.90 USD
Availability: OutOfStock

$5.90

TEC1-12715 vs TEC1-12705, TEC1-12706

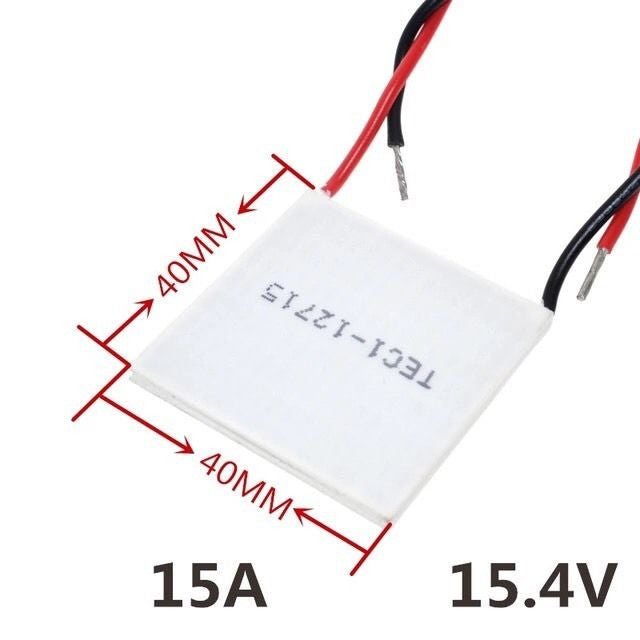

The 127-15 (127 interface, 15 amps) is a workhorse. It features thinner alumina plates (better thermal conductivity) than the more common TEC1-12705 and 12706, fatter wires, and can be run at up to 200 watts with sufficient cooling. Recommend running at 100 watts per module or below for excellent performance and longevity. While you can push a 12705 to 80 watts or more, all you'll get is heat. The 12715 is happy at 100-180 watts with appropriate cooling.

Full Battery specializes in Peltier and Seebeck devices; wholesale inquiries welcome and consulting is always free.

TEC1-12715 DATASHEET

Max Operating Temp	T	<90°C
Max Cooling Power	Q_max	136	Vacuum testing Temp T_h=30°C
Temp Difference Max	△T_max	70	Vacuum testing Temp T_h=30°C
Input Voltage Max	V_max	15.4	Vacuum testing Temp T_h=30°C
Current Max	I_max	15.0	Vacuum testing Temp Th=30°C
Resistance	R	0.75±0.05 Ω	Ambient Temp T_h=25°C
Parallel		≤0.05 mm
Wires		20 AWG

When the ambient temperature raises or falls 1°C, the module resistance will raise or fall 0.015 accordingly.

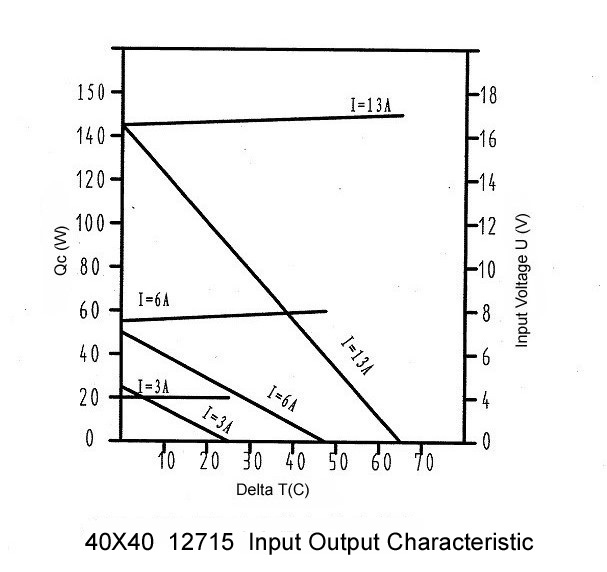

You can always run these at lower voltages for higher efficiency - as the current decreases, the coefficient of performance increases. At 12 volts the ΔT is almost 60°C. As you decrease the voltage and current draw, ΔT will decrease, but even at 1 volt there is a noticeable temperature difference, accompanied by the most efficient heat pumping you will find for this price.

Take your temperature control needs to a new level with solid-state.
