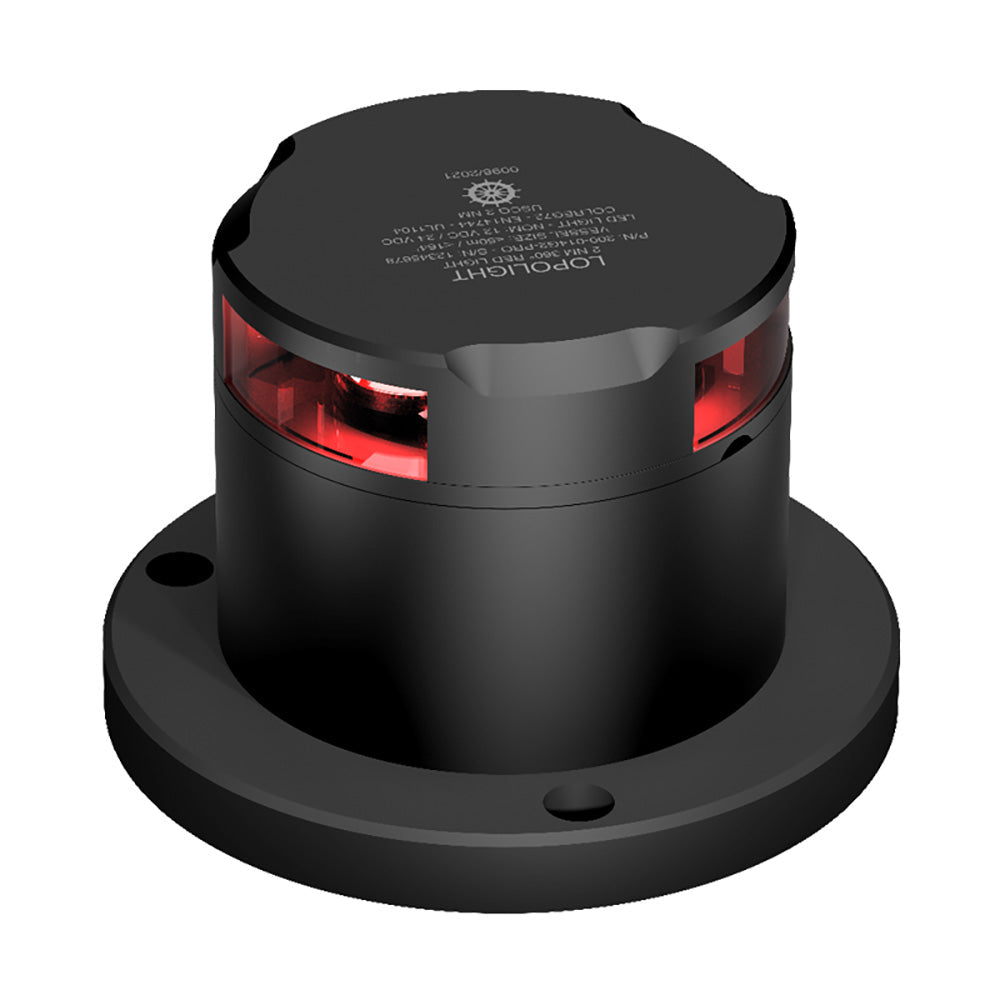

Lopolight 360-Degree Red Nav Light w/De-Icing Function - Black Housing [200-014G2-PRO-I]

Lopolight 360-Degree Red Nav Light w/De-Icing Function - Black Housing [200-014G2-PRO-I]

Ships Direct From Manufacturer

360-Degree Red Nav Light with De-Icing Function - Black Housing

This 360-degree navigation light has a red-light color and black housing while having up to 2 nautical miles of visibility.

Features:

• Built-in de-icing function
• Horizontally mounted on a POM base (IP68)
• Side cable direction
• Included HDPE base plate
• Quality Cable Glands 2 Sizes Are Included: 7-13mm (1/4"-1/2") cable diameter & 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438019331
• Min. Feed Wire Gauge: 1.5mm² AWG18
• Light Color: Red
• Intensity: >5.4cd
• Visibility: 2NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: Plug connector
• Current Consumption (mA @ 24VDC): 85
• Current Consumption (mA @ 12VDC): 150
• Weight: 0.81 kg (35.27 oz)
• Dimensions Metric: Ø92,5mm x 75mm
• Dimensions Imperial: Ø3.6 x 2.9
• Operating Temperature: -60 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2,1W (When de-icing 15W @24VDC)
• Vessel Size: Under 12M,12-20M,20-50M

Specifications:

• Housing: Black
• Lens Color: Red
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 5"H x 6"W x 8"L WT: 2 lbs
• UPC: 879343012137

Quick Guide (pdf)
